Ultimate Dana 60 70 series Rear Axel
SKU 10034330
$8,500.50
On Sale
was $9,445.00 Save 10%
Price incl. GST (10%) $772.77
Model
Please choose
In stock
1
Save this product for later

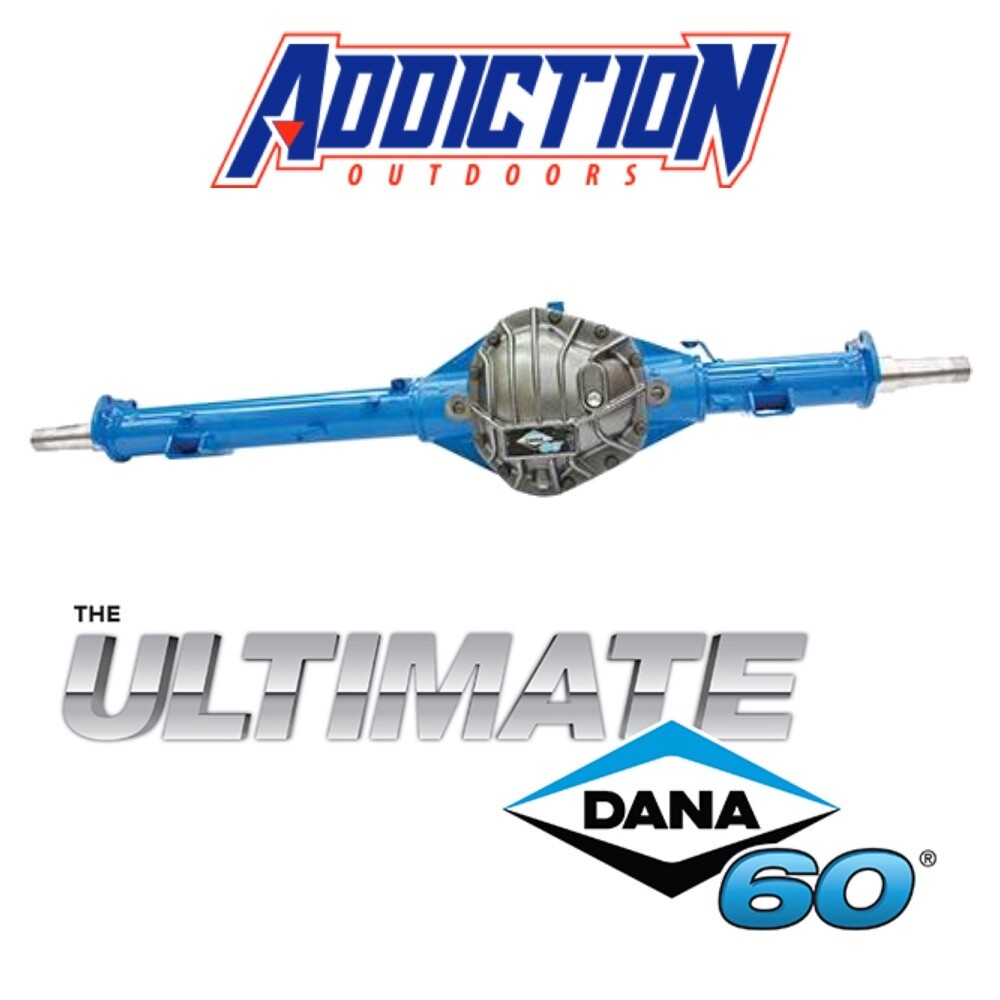

Ultimate Dana 60 70 series Rear Axel
Product Details
Introducing the new
Dana 60 Landcruiser
70 Series Rear Axle
Strength. Power. Endurance. Serious Off Road Performance.
- Australian designed;
- Australian Made
- Increased track width for off road stability
- Increased strength and durability
- Increased axle load capacity and GVM
- Includes E-Locker for all terrain traction
- Increased oil capacity for longer duty cycle
Specifications
|
TOYOTA Axle |
Dana 60 |
Difference |
|
|
Axle Width |
1460mm |
1555mm |
+95mm |
|
Tube Diameter |
Welded 80mm |
DOM 88.9mm |
+8.9mm |
|
Tube Thickness |
6.3mm |
10.0mm |
+3.7mm |
|
Spindle |
Original |
Forged 4340 CRML |
Stronger |
|
Axle Shaft |
Original |
Forged 4340 CRML |
Stronger |
|
Crown Wheel |
OD 241mm |
OD 248mm |
+7mm |
|
Oil Capacity |
2.4L |
3.25L |
+0.85L |
|
Axle Weight |
86kg |
105kg |
+19kg |
|
Rear GAWR |
2350kg* |
2700kg |
+350kg |
|
Diff Lock |
Optional TMC Locker |
Eaton E Locker |
Higher Capacity |
* Assumed rear GAWR of a vehicle with a suspension upgrade for 3850kg.
