- Lift Height 2"
- 3"-4" Lift must use with Extended Shakle GR358EX
- QTY Required x2

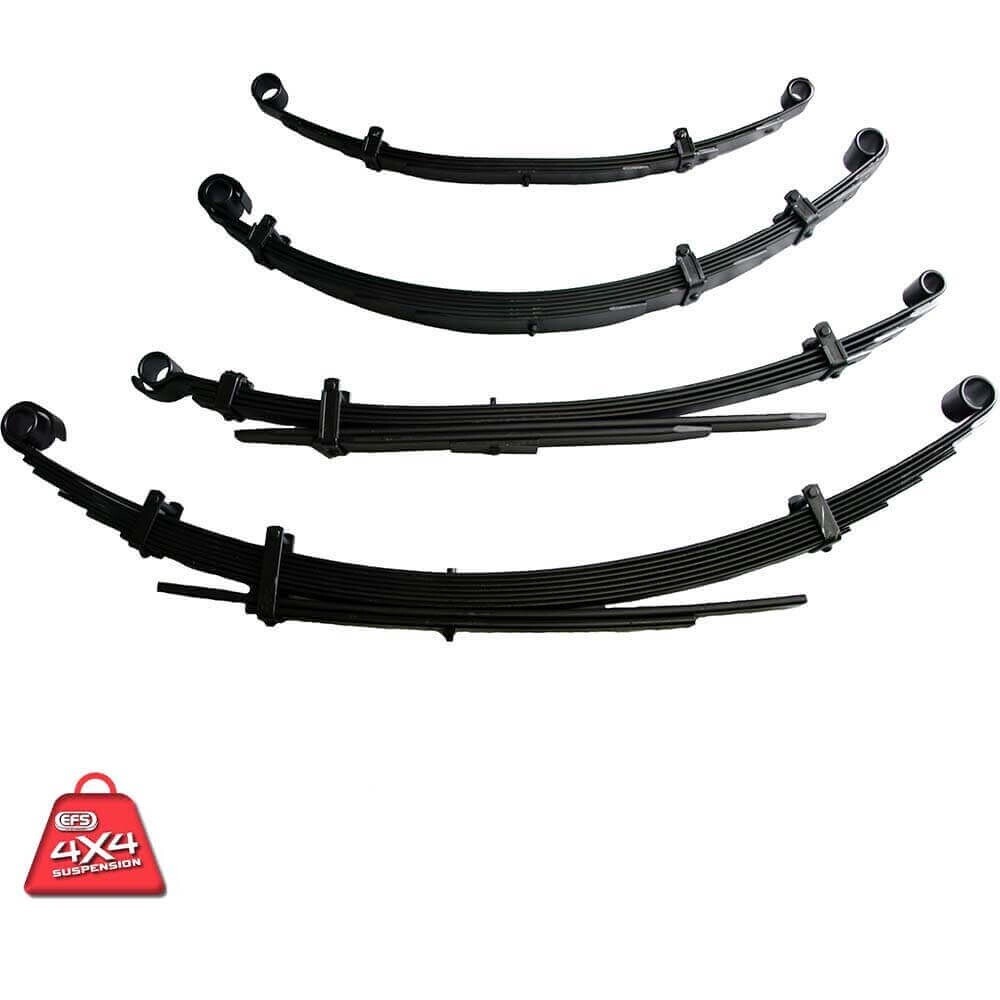

Leaf Springs
QTY Required x2
We manufacture our Multi-Leaf Springs from high-quality Japanese grade SUP9 & SUP9A alloyed carbon spring steel. While our range caters to those looking for maximum comfort, we also produce a range of springs for heavy-duty load-carrying purposes.
All EFS leaf springs incorporate special features like tapered leaf ends, to give you the smoothest ride on-road possible. They also offer increased control off-road with greater articulation and clearance.
Presently EFS springs are available in 30mm to 80mm raised heights from a slight increase to a significant increase in spring rates over OE*.
*OE = Original Equipment – i.e. the manufacturing specs for your vehicle
Specifications
- Tapered leaf ends. This reduces the inter-leaf friction & improves pressure distribution in the load-bearing area
- Bolt clip liners – to reduce noise & friction
- Shot peened & scragged tested – to reduce stress & ensure longevity
- Leaf insert pads – for further reduction of friction
- Bolt clips & military wraps – To prevent leaf spread & provide safety
- 3 year/100,000 km warranty
- Lift Height 2"
- 3"-4" Lift must use with Extended Shakle GR358EX
Spring Rates
TLC-20-10 250kg Constant load
TLC-21-10 350kg Constant load
TLC-79G 550kg Constant load
TLC-79GHD 650kg Constant load - Must use C418 Ubolt
